System Features One Sliding Door and One Fixed Panel

Use Monolithic Tempered Glass

Specially Designed Roller Bearings for Quiet Door Movement

Fixed and Sliding Panels May Be Reversed for Installation

For 3/8" (10 mm) Thick Tempered Glass (Not Included)

U-Channel or Glass Clamps for Fixed Panel Must Be Ordered Separately

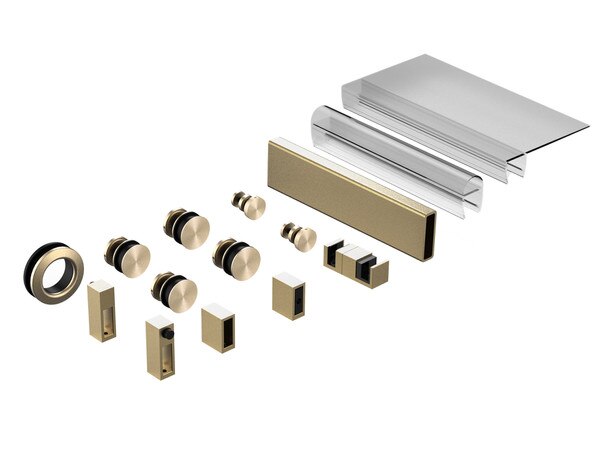

The Streamline Kit Includes:

One - 78-3/4" (2 m) Length Header Bar

Four - Rollers

Two – No Fabrication Stoppers

Two - Track Holder Fittings for Wall

Two - Track Holder Fittings for Fixed Panel

One - Thru-Glass Pull(2" Diameter Hole in Glass)

One - Door Guide

SPECIFICATIONS:

Glass Thickness Range:

5/16" to 3/8" (8 to 10 mm)

Tempered Safety Glass (Not Included)

Material: Stainless Steel

Maximum Door Size: 30" Wide  (88lbs)
