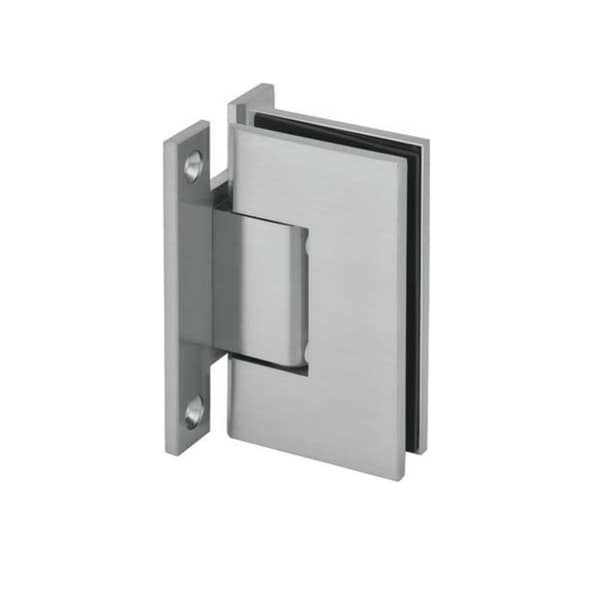

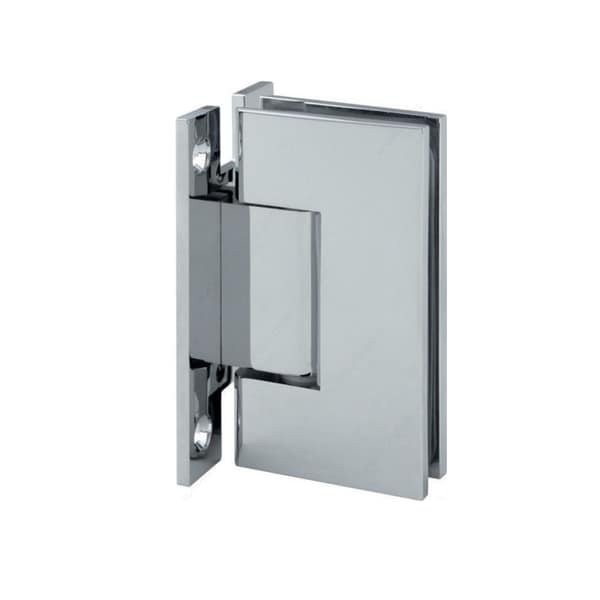

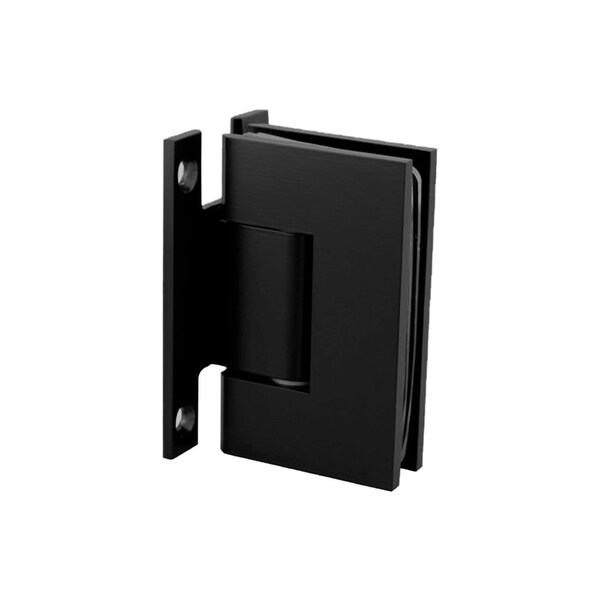

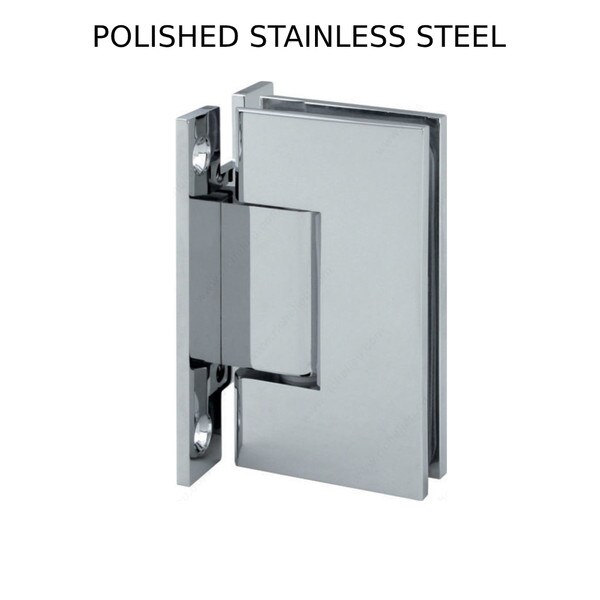

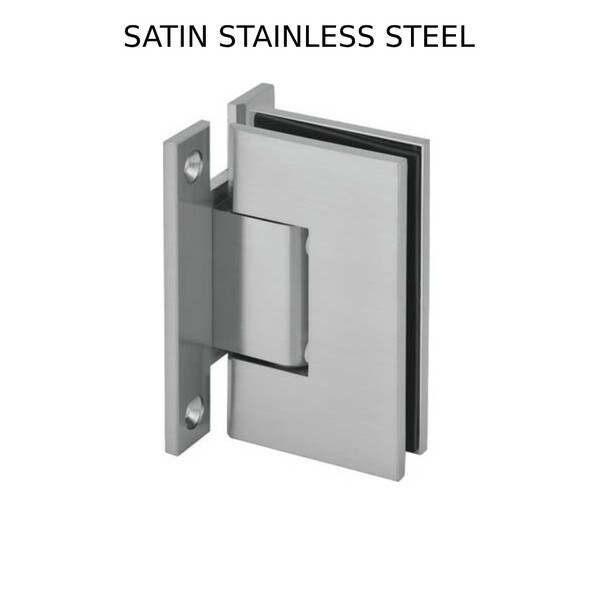

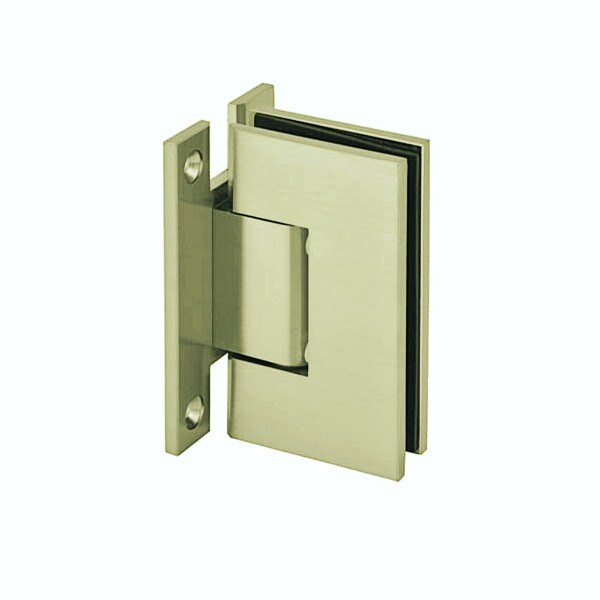

• Square Profile Glass to Wall Hinge with H Back Plate
• Designed For 3/8"-1/2" (10 mm to 12 mm) Tempered Glass
• Many Popular Finishes to Select From
• Self-Centering within 15 Degrees of Closing Position
• Commonly used in Residential Bath and Commercial Hotel Applications
• Includes (4) Durable, Industry Standard Size Phillips Head Mounting Screws Plated 304 Grade S/S Construction

Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:

Construction: Solid Brass

Hinge Swings: 90 degrees in and 90 degrees Out

Closing Type: Self-Centering when within 15 degrees of Closed Position

Cut-Out Required Includes: Gaskets and Screws
