Use Monolithic Tempered Glass

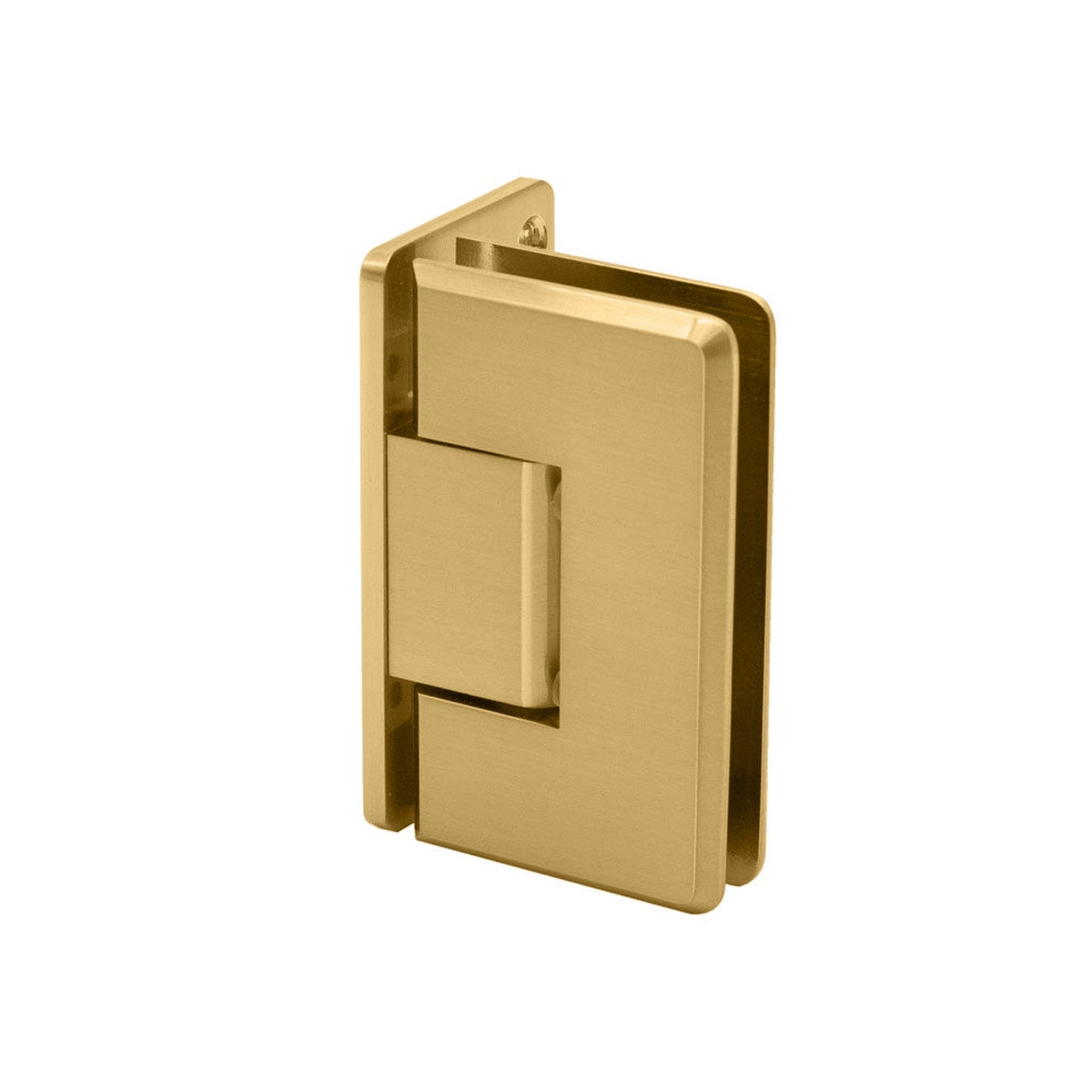

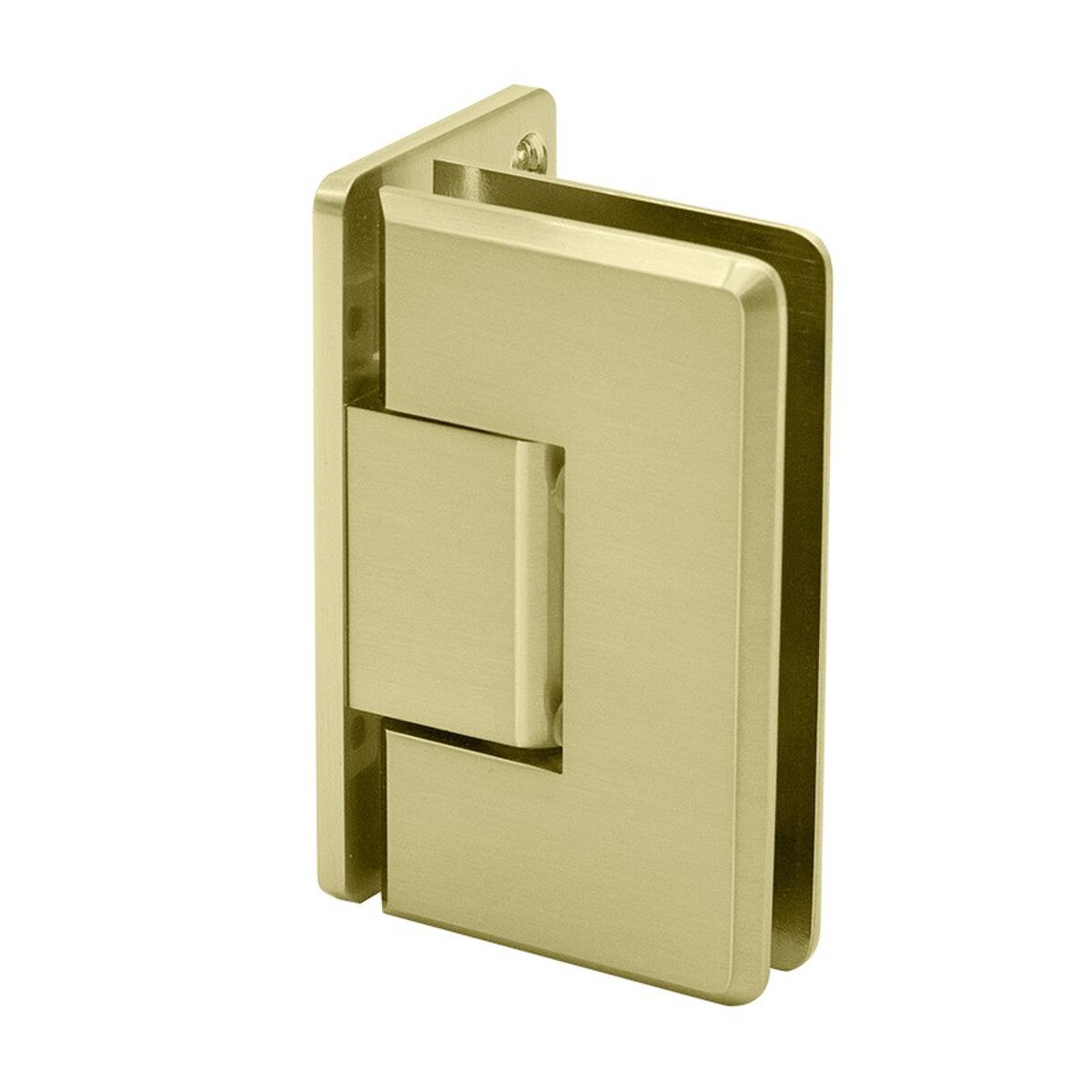

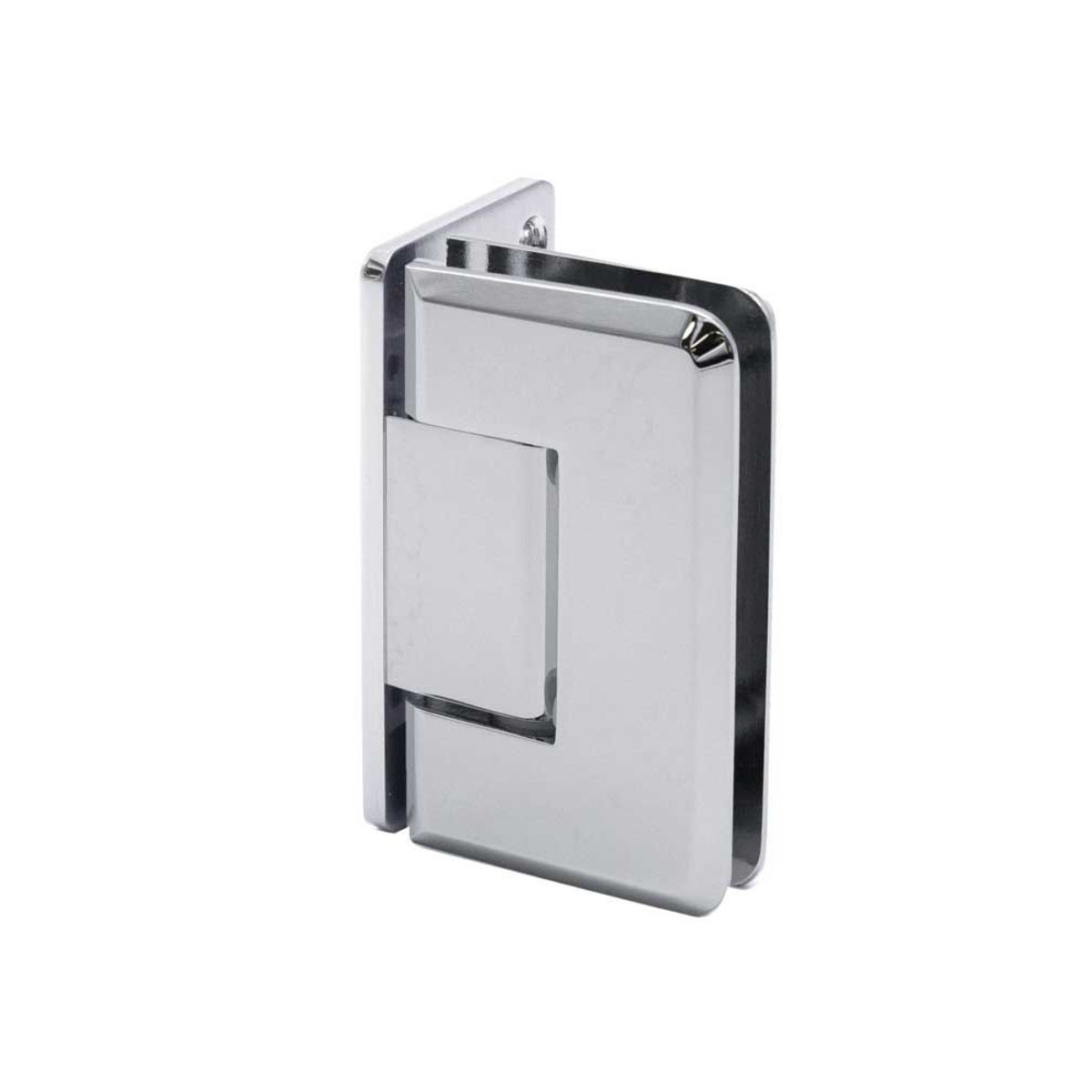

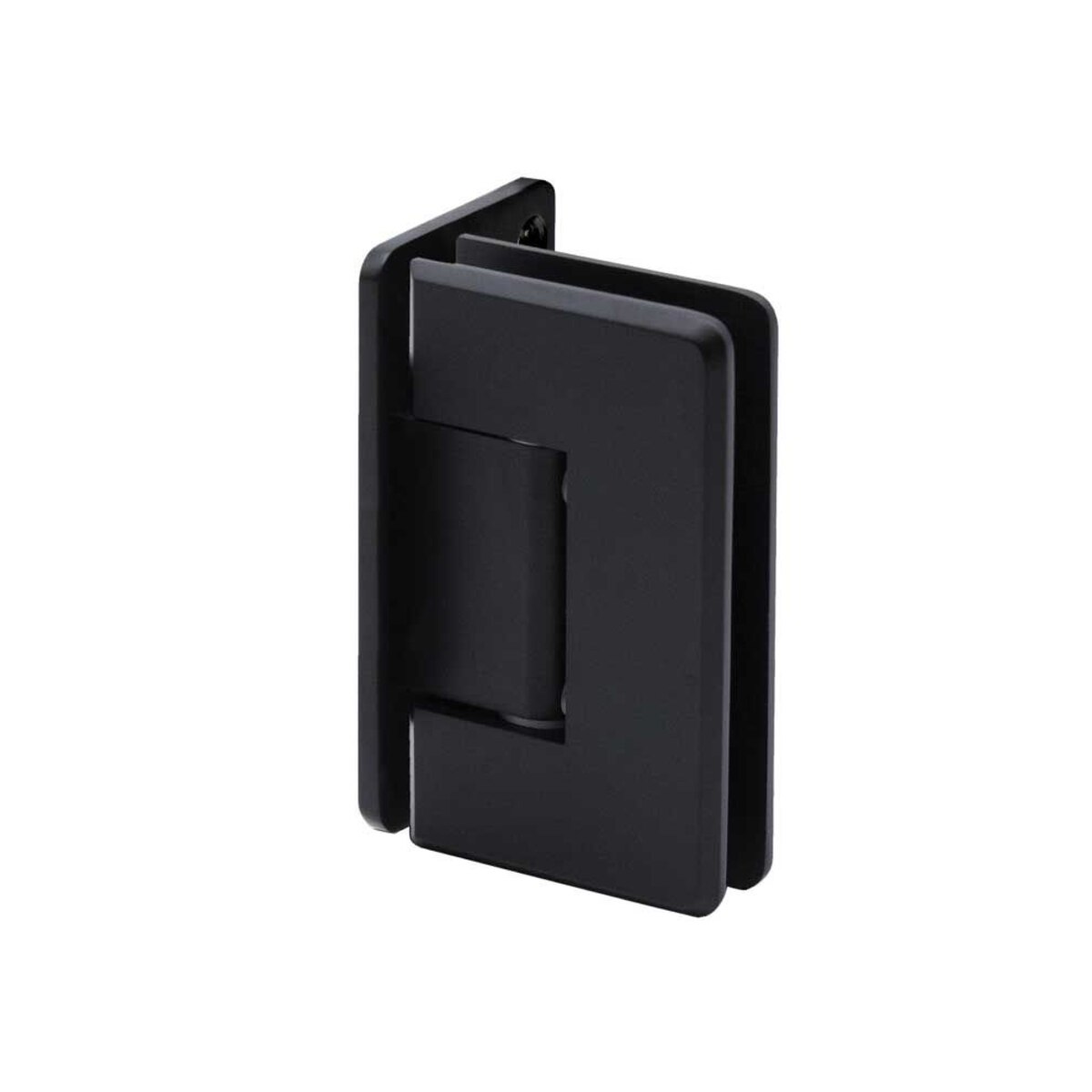

Available in Several Beautiful Finishes

5 Year Warranty

SGS Royal Hinges can accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. Made of solid brass with all moving parts (pins and springs) in stainless steel.

Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:

Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass

Construction: Solid Brass

Hinge Swings: 90 degrees in and 90 degrees Out

Closing Type: Self-Centering when within 15 degrees of Closed Position to Angle Up to 90 Degrees without Removing Door

Cut-Out Required Includes: Gaskets and Screws
